MIDI Utilities

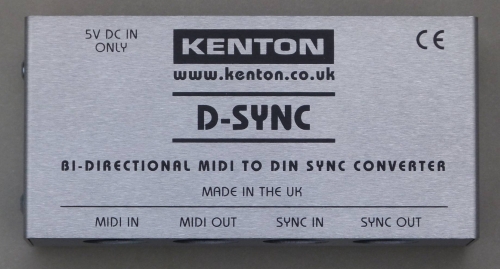

Kenton D-Sync
Bi-directional MIDI to DIN Sync converter
 |
Receives MIDI clock and stop/start data and converts them to DIN-Sync (Sync-24). Also converts DIN-Sync back to MIDI.
Can also be set to operate in Sync-48 mode; the active LED is red when this mode is active (for Sync-24 it is green).
High quality Kenton MIDI MIDI to DIN-Sync converter box with opto-isolated MIDI In plus MIDI Out, Sync In & Sync Out sockets. Powered from a multi-region mains adaptor (wall wart) so you can fit and forget. Can also be powered from a USB socket(although not a USB product)
1 MIDI In & 1 MIDI Out
1 Sync In & 1 Sync Out
DC power input jack 2.1mm (centre +ve)
Power/Data indicator light
Housed in a metal box so it can withstand the knocks
Attractively finished in brushed aluminium with black screen print
5V switch mode power supply included.
This product is supplied with a multi-region power supply
| Power: | 5V at 50mA regulated | ||
| Dimensions: | 110mm x 55mm x 35mm | ||
| Weight: | 250g including power supply | ||
| MIDI: | 1 x In, 1 x Out | ||
| Sync: | 1 x In, 1 x Out | ||
| Power Supply: | 5V switch mode power supply included with the product. This product is supplied with a multi-region power supply. | ||
| For further information please refer to the manual. |
Download the manual
To download the current manual click here (Acrobat File 325Kb)
